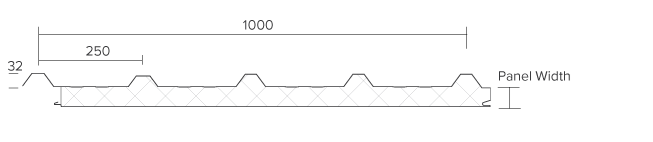

CROSS SECTIONAL LINE DRAWING
ThermoSpan EPS
- EPS Core
- ThermoSpan EPS consists of a 0.59mm profiled roofing sheet bonded to an EPS core with a ceiling panel sheet bonded to the underside. ThermoSpan EPS does have fire retardant properties but is not fire rated.
- Codemark Certified
- ThermoPanel is Codedmark Certified. Please refer to Codemark certification for scope and limitations of use of ThermoSpan.
- MINIMUM PITCH:
- 3 degrees
- MANUFACTURED:
- Auckland, available nationwide
- ORIENTATION:
- Roof and wall cladding
- SHEET LENGTH:
- Lengths from 2m-24m. Please note lengths are restricted by transportation to site. If sheet lengths longer than 15m are required, please check with Metalcraft Insulated Panels.
- LAPS:
- End lapped upto 16m then step joints required
Downloads
Download AllInstallation details available for download in PDF, DWG, DXF & RVT files
Loadspan Tables and Product Information
Commercial Roof Details
Codemark Installation Guide
Residential Roof Details
Codemark Specifications
Product Technical Statement upto 2.5Kpa
Product Technical Statement above 2.5Kpa
Metalcraft Codemark Designer Declaration
Codemark Care and Maintenance
Codemark Certificate
Metalcraft Codemark Installation Declaration
Masterspec Specification Link
Maintenance Brochure
Colour Guide
Determine your wind zone
Installation Guide
Thermospan Design Guide
Masterspec Links
What is Codemark
COLORSTEEL® Maxam™ Product Information Sheet
COLORSTEEL® Insulated Panels brochure
COLORSTEEL® Insulated Panels Product Information Sheet
250MM THICK THERMOSPAN ACHIEVES R6.6 this exceeds the minimum R-value requirement to comply with H1-Energy Efficiency
DOWNLOAD YOUR H1 COMPLIANCE GUIDE HERE
Manufactured in Auckland - Max length 24m. Please note Lengths are restricted by transportation to site.
External Facing: 0.59mm CP Grade Prepainted Galvanised Steel or COLORSTEEL® Maxam™. The correct steel is dependent on the environmental category and corrosion zone, please consult Metalcraft Insulated Panels.
Internal Facing: 0.59mm CP Grade Prepainted Galvanised Steel.
FEATURES AND BENEFITS
ThermoSpan consists of a 0.59mm profiled roofing sheet bonded to an EPS core with a ceiling panel sheet bonded to the underside. The EPS core is treated with a flame retardant additive.
• NZ Made for longer sheet lengths and shorter lead times.
• EPS core treated with a flame retardant additive
• Thermally efficient
• A reduction of wet trades
• Ease of cutting and trimming on site
• Minimal mess on site
• Compatibility with openings and design elements of the building
• NZ Steel - COLORSTEEL® colours for perfect colour match with flashings
