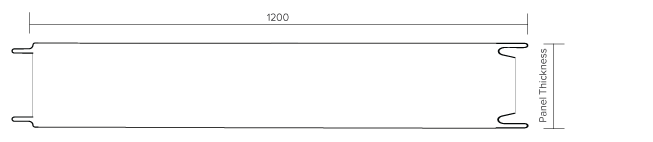

CROSS SECTIONAL LINE DRAWING
ThermoPanel EPS
- EPS core
- The Metalcraft Insulated EPS Panel is a stressed skin sandwich panel, comprised of pre-painted steel skins continuously laminated over a fire retardant treated Expanded Polystyrene (EPS) core. EPS core, whilst having a fire retardant additive is not fire rated.
- Codemark Certified
- ThermoPanel is Codedmark Certified. Please refer to Codemark certification for scope and limitations of use of ThermoPanel.
- MANUFACTURED:
- Auckland, Available Nationwide
- ORIENTATION:
- Wall cladding, Roofing depending on application. Contact Metalcraft Insulated Panels for more information
- SHEET LENGTH:
- Lengths from 2m-24m. Please note lengths are restricted by transportation to site. If sheet lengths longer than 15m are required, please check with Metalcraft Insulated Panels.
- LAPS:
- End lapped upto 16m then step joints required
Downloads
Download AllInstallation details available for download in PDF, DWG, DXF & RVT files
Loadspan Table and Product Information
Controlled Environment Details
External Wall Cladding Details
Codemark Installation Guide
Metalcraft Codemark Designer Declaration
Codemark Care and Maintenance
Codemark Certificate
Codemark Specifications
Maintenance Brochure
Panel Bracing
Colour Guide
Masterspec Links
What is Codemark
COLORSTEEL® Maxam™ Product Information Sheet
COLORSTEEL® Insulated Panels brochure
COLORSTEEL® Insulated Panels Product Information Sheet
250MM THICK THERMOSPAN ACHIEVES R6.6 this exceeds the minimum R-value requirement to comply with H1-Energy Efficiency
DOWNLOAD YOUR H1 COMPLIANCE GUIDE HERE
Manufactured in Auckland - Max length 24m. Please note Lengths are restricted by transportation to site.
External Facing: 0.59mm CP Grade Prepainted Galvanised Steel or COLORSTEEL® Maxam™. The correct steel is dependent on the environmental category and corrosion zone, please consult Metalcraft Insulated Panels.
Internal Facing: 0.59mm CP Grade Prepainted Galvanised Steel.
FEATURES AND BENEFITS
Thermopanel is a stressed skin sandwich panel, comprised of pre-painted steel skins continuously laminated over a fire retardant Polystyrene (EPS) core.
The EPS core has a flame retardant additive. ThermoPanel is available is a range of colours with a variety of profile finishes, providing greater strength in walls and a clean, smooth aesthetic look.
• A reduction of wet trades
• Efficient concealed fixing system
• Ease of cutting and trimming on site
• Minimal mess on site
• Compatibility with openings and design elements of the building
What now?
COLORSTEEL® COLOUR OPTIONS
All colours are available in COLORSTEEL® Maxam™. The standard colour is Titania on both sides. The colour Ebony is only suitable for interior linings. This is due to heat build-up on dark colours and, in the worst case, potential delamination of steel from the core. The colours Ironsand, Flaxpod®, Grey Friars, and Sandstone Grey are also available in a low-gloss finish. Please note that the colours below are indicative, and we recommend you request a steel colour sample from your nearest Metalcraft Roofing branch. The homeowner should be aware that temperatures of dark colours are higher than those of lighter colours. Darker colours will thermally expand more. Thermal expansion of metal roofs is covered in the NZMRM Code of Practice. The MBIE document on roof cladding advises that noise from thermal expansion is normal and should be expected. Refer to MBIE -Guide to tolerances, materials and workmanship in new residential construction 2015.
Karaka
Gull Grey
Permanent Green
Mist Green
Lichen
FlaxPod®
Ironsand
Slate
Grey Friars
New Denim Blue
Thunder Grey
Sandstone Grey
Cloud
Titania
Scoria
Pioneer Red
Windsor Grey
TuiTuft®
StonePeak™ Matte
Sandscape®
SandBar™
The Metalcraft Insulated EPS ThermoPanel is a stressed skin sandwich panel, comprised of pre-painted steel skins continuously laminated over a flame retardant treated Expanded Polystyrene (EPS) core. The EPS core, whilst having a flame retardant additive is not fire rated.
Metalcraft Insulated EPS Panel can be used in horizontal or vertical applications and with a range of colour, joint and profile options, it can meet the functional and aesthetic requirements demanded by a variety of facilities such as Sports Centres, Commercial premises, Offices, Warehouse and Factories.
GREATER STRENGTH
Metalcraft Insulated EPS Panel's range of colours, joints and profiles deliver a first class finish inside and out. The panels can be joined with a standard slip joint or a tongue and groove type joint. It allows for easy and rapid installation whilst providing greater strength in walls and a clean, smooth aesthetic look.

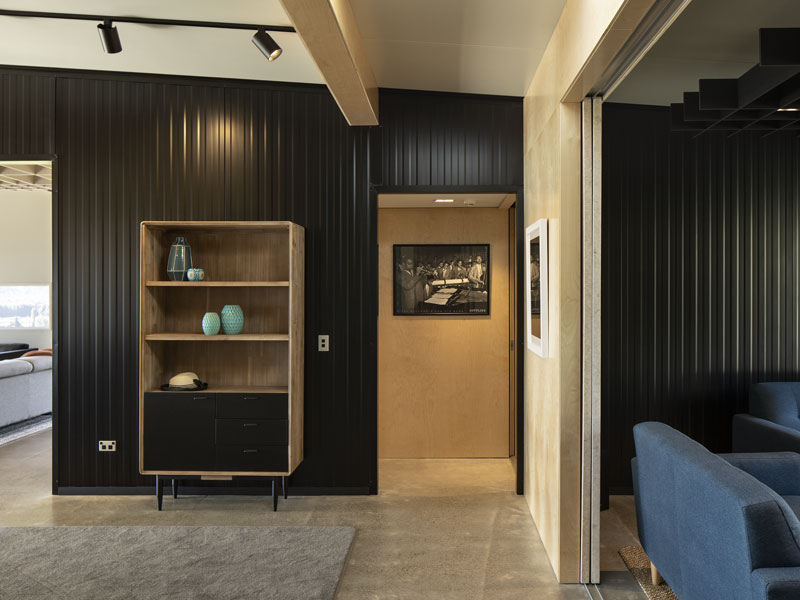

INTERIOR PANEL
ThermoPanel is not just for controlled environments, the panel can be used as exterior and interior wall panels.

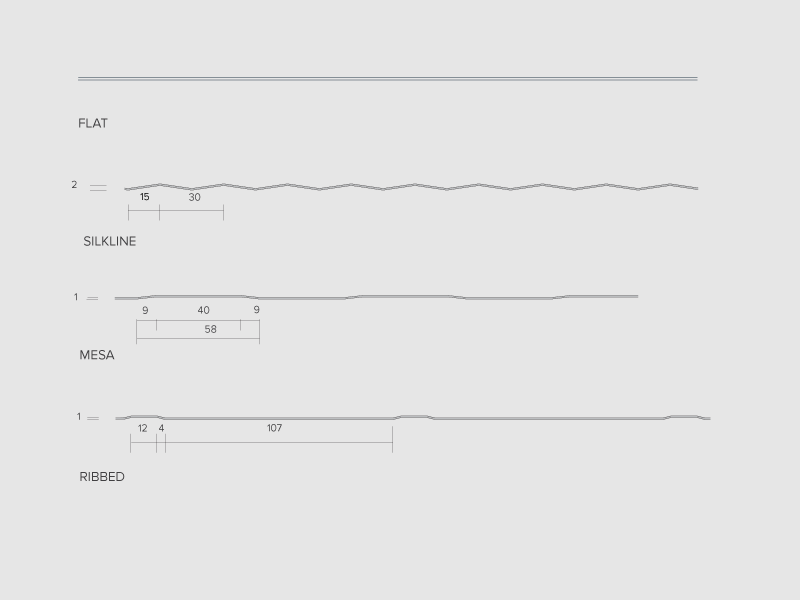

INNER SKIN OPTIONS
Thermopanel® has a fire retardant EPS core and is available with a range of colour and ceiling profile finishes.
