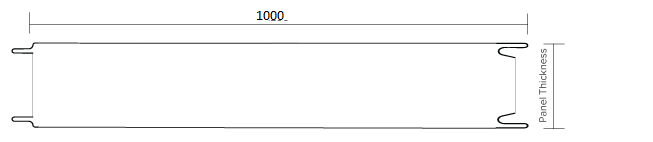

CROSS SECTIONAL LINE DRAWING
AspirePanel (PIR)
- PIR Core
- AspirePanel™ is a stressed skin sandwich panel, comprised of pre-painted steel skins continuously laminated over a fire retardant PIR core. AspirePanel™ is available in a range of colours with a variety of profile finishes, providing greater strength in walls and a clean, smooth aesthetic look.
- Codemark Certified
- Aspirespan® is now Codedmark Certified. Please refer to Codemark certification for scope and limitations of use of Aspirespan®
- Large scale fire tested
- 150mm Aspirepanel has achieved large scale fire testing -Branz Fire Test Report FF17611-01-1 -In accordance with BR 135:2013.
- NZ MANUFACTURED:
- Manufactured in Auckland, using locally and imported products. Available nationwide
- SHEET LENGTH:
- 15m un-piloted truck, longer lengths available depending on freight restrictions to site
- NZ Steel - COLORSTEEL®
- NZ Steel - COLORSTEEL® colours providing perfect colour match with flashings
Downloads
Download AllInstallation details available for download in PDF, DWG, DXF & RVT files
Loadspan Tables and Product Information
External Wall Details
Controlled Environments Details
AWTA Report
BRANZ BS8414:2015 Certificate
Branz Assessment Certificate -Maxam BS8414:2015
Branz ISO 9705 Certificate
Branz ISO 9705 Assessment Maxam
Redco 236641 Loadspan Tables
Redco 24340 Issue 1 Wall to Roof Fixings
Redco 24340 Wall to Roof Fixings Sheets
Redco 20295 Issue 3 Bracing Assessment
Redco 25690 Issue 3 Axial Load Tables
Redco 23950 Issue 5 Fixings to underside
Redco MC-RD1 Roof Bracing For Small Buildings
Redco MC-TP1 Wall Bracing For Small Buildings
Redco MC-TP2 Wall Bracing For Small Buildings
Codemark Certificate
Metalcraft Codemark Designer Declaration
Codemark Installation Declaration
What is Codemark
Maintenance Brochure
H1 Guidance Document
Panel Bracing
Colour Guide
Determine your wind zone
Masterspec Links
Panel Order Form
COLORSTEEL® Maxam™ Product Information Sheet
AspirePanel (PIR) comprises of pre-painted steel skins bonded to a PIR core with a ceiling panel sheet bonded to the underside. AspirePanel (PIR) does have fire retardant properties.
LARGE SCALE FIRE TESTED 150mm Aspirepanel has achieved large scale fire testing -Branz Fire Test Report FF17611-01-1 -In accordance with BR 135:2013.
Product & Benefits:
• Fire resistant core
• Long spans
• NZ Steel COLORSTEEL®
• NZ warranty
• Thermally efficient
• A reduction of wet trades
• Efficient concealed fixing system
• Ease of cutting and trimming on site
• Minimal mess on site
• Compatibility with openings and design elements of the building

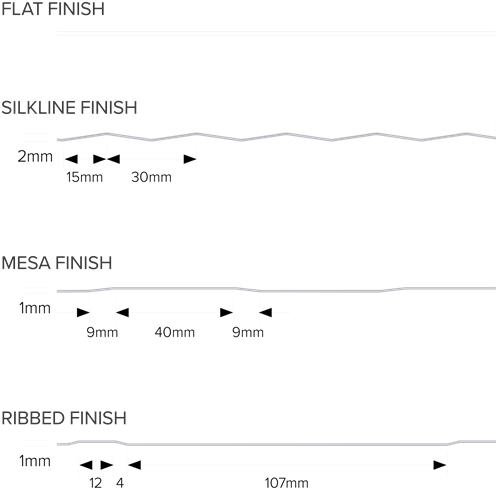

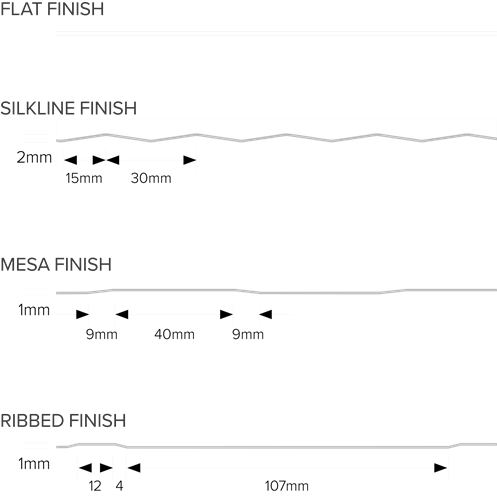

AspirePanel is available with a range of colour and ceiling profile finishes.
What now?
COLORSTEEL® COLOUR OPTIONS
All colours are available in COLORSTEEL® Maxam™. The standard colour is Titania on both sides. The colour Ebony is only suitable for interior linings. This is due to heat build-up on dark colours and, in the worst case, potential delamination of steel from the core. The colours Ironsand, Flaxpod®, Grey Friars, and Sandstone Grey are also available in a low-gloss finish. Please note that the colours below are indicative, and we recommend you request a steel colour sample from your nearest Metalcraft Roofing branch. The homeowner should be aware that temperatures of dark colours are higher than those of lighter colours. Darker colours will thermally expand more. Thermal expansion of metal roofs is covered in the NZMRM Code of Practice. The MBIE document on roof cladding advises that noise from thermal expansion is normal and should be expected. Refer to MBIE -Guide to tolerances, materials and workmanship in new residential construction 2015.
Karaka
Gull Grey
Permanent Green
Mist Green
Lichen
FlaxPod®
Ironsand
Slate
Grey Friars
New Denim Blue
Thunder Grey
Sandstone Grey
Cloud
Titania
Scoria
Pioneer Red
Windsor Grey
TuiTuft®
StonePeak™ Matte
Sandscape®
SandBar™
ASPIREPANEL - CODEMARK CERTIFIED
Aspirepanel® is now Codedmark Certified. Please refer to Codemark certification for scope and limitations of use of Aspirespanel®
WHAT IS CODEMARK?
CodeMark is a voluntary product certification scheme that provides an easily-understood and robust way to show a building product or building method meets the requirements of the New Zealand Building Code.A CodeMark certificate must be accepted by Building Consent Authorities as meeting the requirements of the New Zealand Building Code, provided the certificate is current and the product or method is used in accordance with details noted on the certificate.
